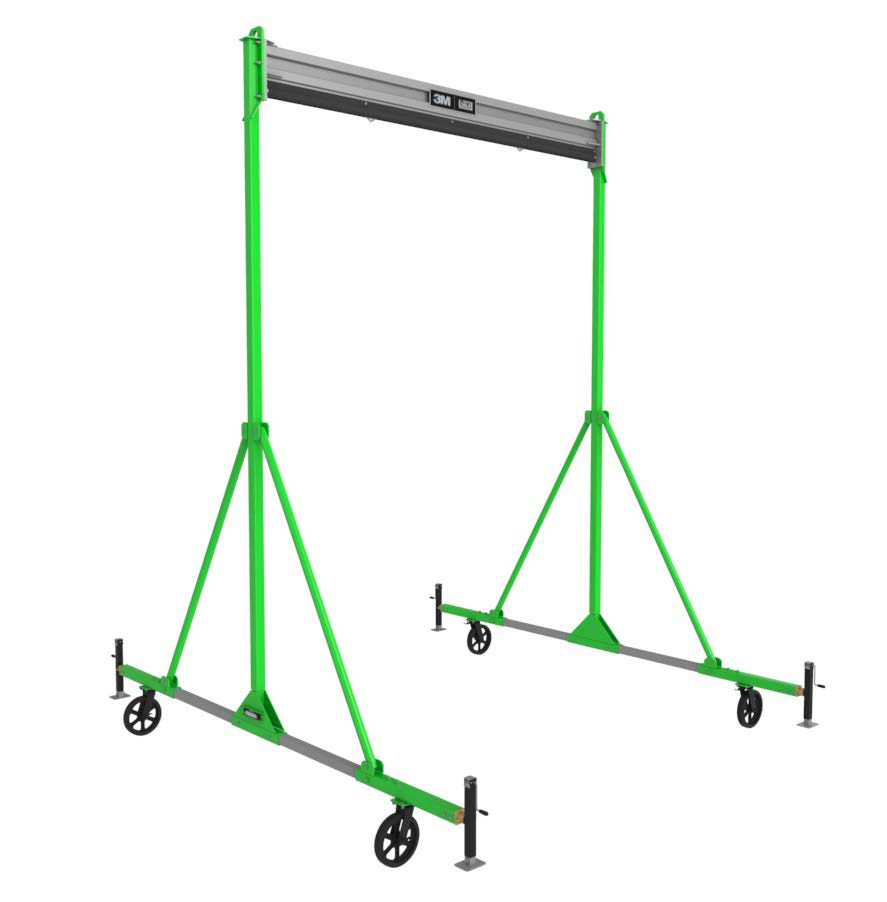

FlexiGuard Portable A-Frame Fall Arrest System, 30 ft. Fixed Ht., 8560021

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 70007602405

Manufacturer part number: 8560021

Lead Time (subject to change, call to verify): typically ships in 60-70 business days

Call for Price - (314) 492-4422

Documents, Drawings, and Manuals

Brochure

3M | DBI-SALA FlexiGuard Brochure

Manual

FlexiGuard A-Frame Fall Arrest Manual

Product Specifications

Attribute name	Attribute value
Features	Anchor Height: 30 ft. (9.1 m) fixed height overhead rail Frame Width: 30 ft. (9.1 m) fixed width for horizontal mobility Caster Wheels: 16 in. (0.4m) Pneumatic Wheel Kit Weight Capacity: 2 person up to 310 lbs. each (141 kg) Weight: 2,600 lbs. (1179.3 kg) Finish: Yellow Powder-Coated Material: Durable aluminum and Anodized High Strength Alloy Steel Construction Standards/Approvals: ANSI Z359.6, OSHA 1926.502 Number of Users: Two System includes two (2) trolleys and two (2) maintenance free extruded aluminum enclosed rails. All hardware included (SAE J429 Grade 8 hardware with zinc yellow Chromate-plated finish). Fixed height is ideal when no overhead restrictions apply. 100% fall arrest rated tie-off point from the ground up. Portable, rugged yet lightweight design is easily moved by minimal personnel with a forklift. Recommended for indoor use. Heavy duty leveling jacks and built-in slope indicators. Provides a large, working area — working radius from rail is 6 ft. or 30 degrees. Rigid rail anchor point design have no deflection or sag, reducing fall clearance requirements. Visual level indicators with heavy duty leveling jacks.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
