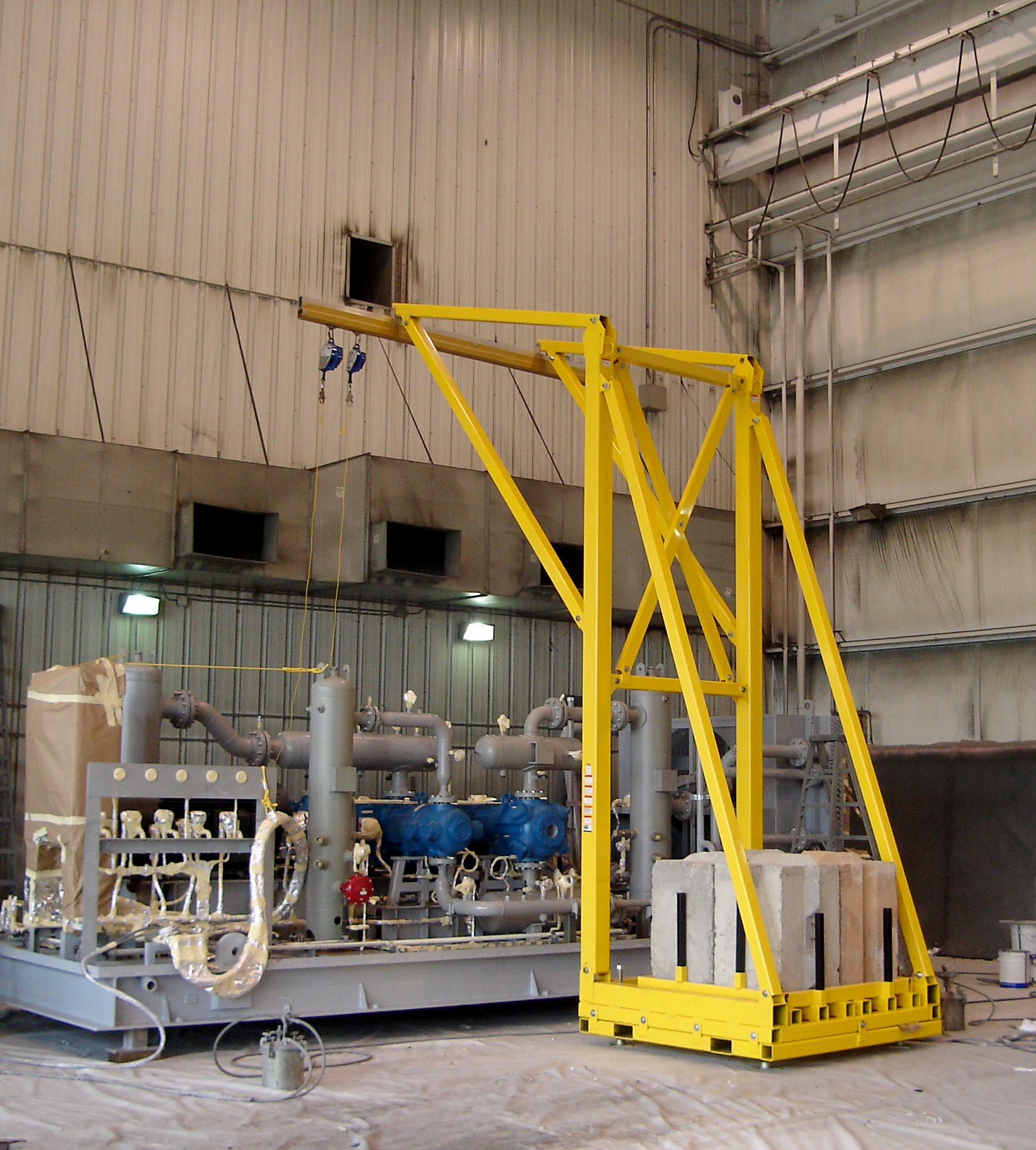

FlexiGuard Counterweighted Overhead 42 ft. Rail Fall Arrest System, 22 ft. Ht., Counterweights Included, 8517763

Manufacturer: 3M | DBI-SALA
SKU: 70007496196
Manufacturer part number: 8517763
Lead Time (subject to change, call to verify): typically ships in 13-16 business days
Call for Price - (314) 492-4422
Ship to
Shipping Method
Estimated Delivery
No shipping options
Product Specifications
Attribute nameAttribute value
  • Anchor Height: 22 ft. (6.7 m)
  • Rail Length: 42 ft. (12.8 m)
  • Offset Jib Length: 8 ft. (2.4 m)
  • Weight Capacity: 2 person up to 310 lbs. each (141 kg)
  • Weight: 11,980 lbs. (5,434 kg)
  • Finish: Yellow Powder-Coated
  • Material: Anodized High Strength Alloy Steel
  • Standards/Approvals: ANSI Z359.1-1992, OSHA 1926.502, OSHA 1910.66
  • Number of Users: Two
  • Recommended Counterweights: Min. 6,800 lbs. (3,084.4 kg). Two (2) 4,000 psi (27.6 Mpa) concrete blocks, 6 ft. L x 2 ft. W x 2 ft. H (182cm x 60cm x 60cm)
  • System includes two (2) trolleys and one (1) enclosed rail to help keep debris and weather elements out.
  • Concrete weights / Counterweights are included.
  • All hardware included (SAE J429 Grade 8 hardware with zinc yellow Chromate-plated finish).
  • Fixed height ideal when no overhead restrictions apply. 100% fall arrest rated tie-off point from the ground up.
  • Base with built-in fork lift pockets to ensure ease of mobility and placement between job sites.
  • Portable, rugged yet lightweight design is easily moved by minimal personnel with a forklift.
  • Recommended for indoor use. Heavy duty leveling jacks and built-in slope indicators.
  • Provides a large, working area — working radius from rail is 6 ft. or 30 degrees.
  • Rigid anchor points have no deflection or sag, reducing fall clearance requirements.
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
