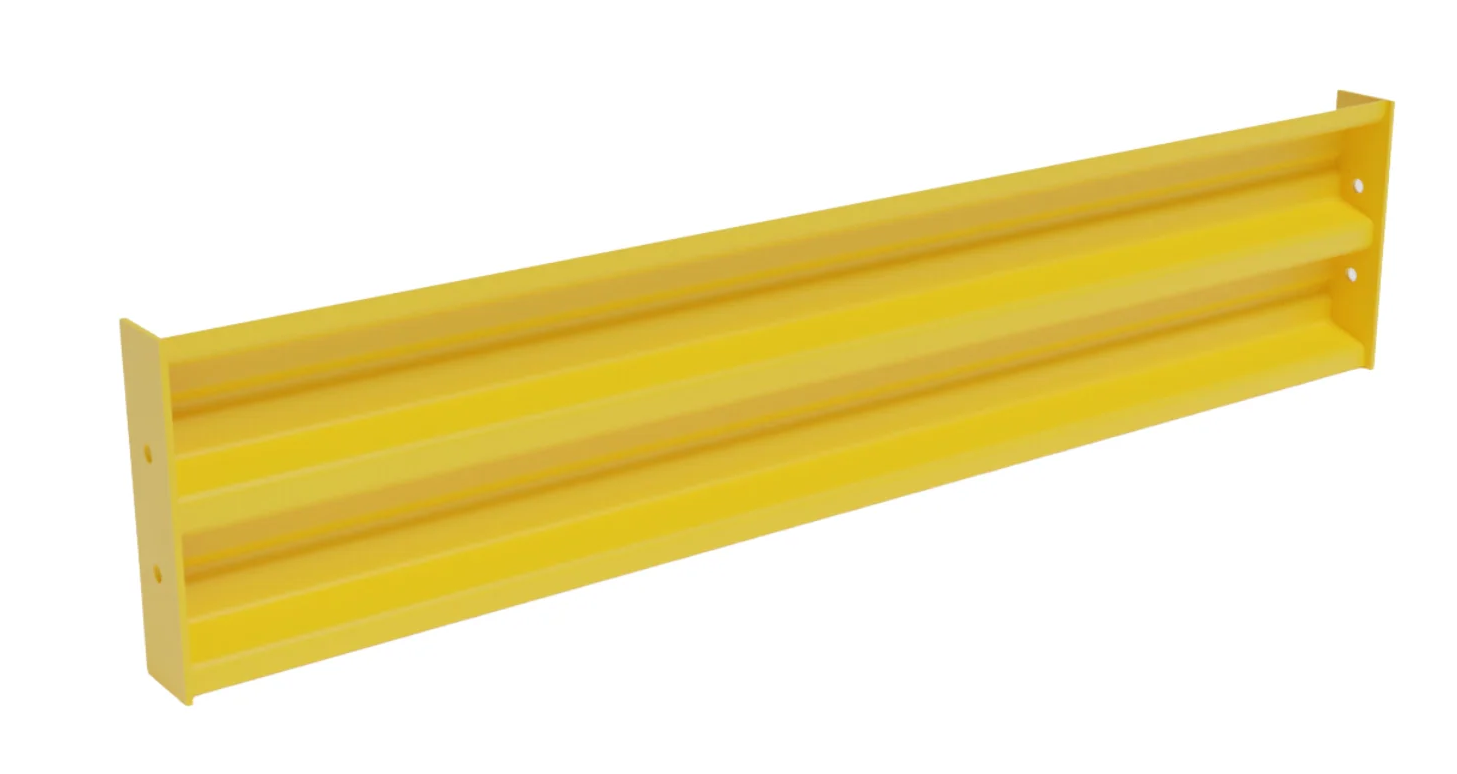

4 ft. Heavy Duty Guardrail Section, R4

SKU: R4
Manufacturer part number: R4
Lead Time: typically ships in 25-30 business days
$148.00
Product Specifications
Features
  • Rating: 10,000-lb load at 4 mph
  • Weight: 35 lbs.
  • Simple layout with universal column
  • Easy installation with all hardware included
  • Bright OSHA yellow finish on columns
  • Columns are 4 in. x 4 in. square tube manufactured from high-strength steel
  • Baseplate is 10 in. x 10 in. x 5/8 in. thick steel and can be offset if needed
  • Rails are 10 ga high-tensile steel formed into a two-rib corrugated design with two secondary ribs (Dimensions: 4 ft. L x 1 ft. W)
  • Anchors are 5-1/2 inch screw anchors and hardware is A325 1/2 inch
  • Rails available in lengths from 2 ft. through 10 feet
  • Easy installation with universal column, all hardware included
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
