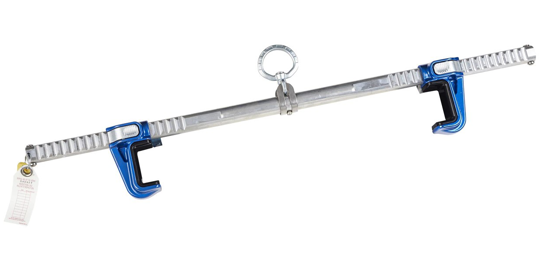

3M | DBI-SALA Sliding Beam Anchor, Large, 2104715

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 70804485558

Manufacturer part number: 2104715

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

Flange Width *

Beam Thickness *

$621.35

Qty:

Documents, Drawings, and Manuals

Brochure

3M | DBI-SALA Sliding Beam Anchor Brochure

Manual

3M | DBI-SALA Sliding Beam Anchor Manual

Product Specifications

Attribute name	Attribute value
Features	Model: Sliding Beam Anchor - 2104715 Attachment Type: Clamp Install Type: Reusable For Use With: I-Beams Flange Width: 12 to 30 in. (30.48 - 76.20 cm) Max. Flange Thickness: 2.5 in. Dimensions: 37.25 x 2.25 x 5.50 in. Weight: 7.26 lbs. Capacity: 310 lbs. (141 kg) ANSI / 420 lbs. (190 kg) OSHA Anchor point that attaches to I-beams and slides effortlessly along the beam as the worker moves. Hands-Free Mobility - 360-degree swiveling D-ring optimizes your mobility on the beam. Visible Adjustability - dual ratcheting adjustment buttons are accessible above the beam, while locking mechanism is located on the side to reduce accidental engagement. Replaceable Wear Pads - snap-in design of wear pads allow them to be replaced quickly in the field.
Standards/Approvals	ANSI Z359.18, OSHA 1910.140, OSHA 1926.502
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
