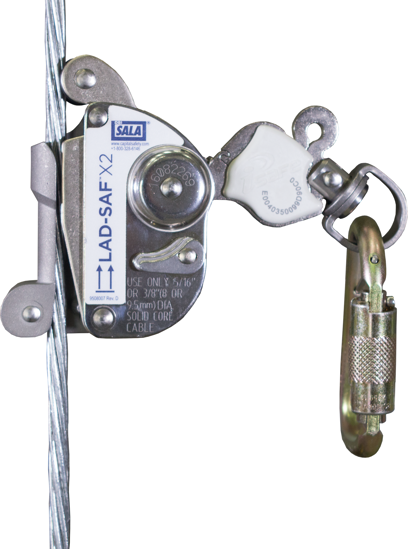

3M | DBI-SALA Lad-Saf X2 Detachable Cable Sleeve, 6160030

Manufacturer: 3M | DBI-SALA

Availability: In stock

SKU: 70007479622

Manufacturer part number: 6160030

Lead Time (subject to change, call to verify): typically ships in 3-5 business days

$595.51

Qty:

Documents, Drawings, and Manuals

Brochure

3M | DBI-SALA Lad-Saf X2 Cable Sleeve Brochure

Manual

3M | DBI-SALA Lad-Saf X2 Cable Sleeve Manual

Product Specifications

Attribute name	Attribute value
Features	Model: Lad-Saf X2 Detachable Cable Sleeve - 6160030 Carabiner Material: Zinc Plated Steel Install Type: Temporary Cable Compatibility: 3/8 in. (9.5 mm) or 5/16 in. (8 mm) diameter 1x7 or 7x19 solid core cable Max. Users: 1 Dimensions: 4.7 in x 1.3 in x 6 in Weight: 2.1 lbs. Capacity: 310 lbs. Portable connection device that connects the worker’s harness to the ladder cable and glides freely up or down the cable as the worker climbs. Easy to Install/Detach - one-handed attachment or removal from the cable delivers fast, easy, and safe connections anywhere along the cable. Dual Independant Locking System - sleeve is designed to lock onto the cable and arrest falls, and if one of the two independent means of locking is compromised, the second will engage to arrest the fall. Integrated Energy Absorber - limits the maximum fall arrest force to 1,350 lbs.(6 kN) or less, and shows the device must be taken out of service. Corrosion Resistant - compact and lightweight stainless steel construction stands up to harsh environments.
Standards/Approvals	ANSI A14.3-1992, ANSI Z359.16
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to EFP's repair facility.)
